What Is Potassium Permanganate Activated Carbon?

It combines the physical adsorption capacity of activated carbon with the strong chemical oxidation ability of potassium permanganate to achieve efficient pollutant removal.

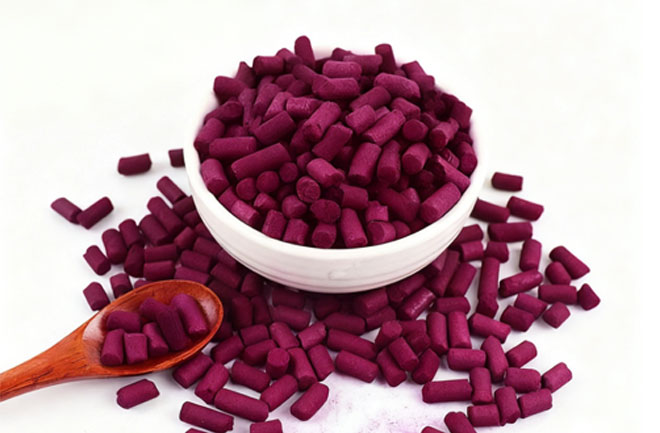

Appearance: Typically appearing as dark purple or purple-black granules or spheres, this is the hallmark color of potassium permanganate. With use, the color gradually fades, eventually turning brown or dark yellow (as manganese dioxide is formed).

I. Core Working Principle: Physical Adsorption + Chemical Oxidation
Physical Adsorption: The activated carbon carrier has a large surface area and rich pore structure, allowing it to initially capture pollutant molecules (such as formaldehyde and hydrogen sulfide) from the air onto its surface like a sponge.

Chemical Oxidation: The adsorbed pollutants come into contact with the potassium permanganate loaded on its surface, undergoing a redox reaction. Potassium permanganate oxidizes pollutants into harmless carbon dioxide, water, or stable salts, while simultaneously reducing itself to manganese dioxide (MnO₂), which precipitates in the pores.

For example, the chemical reaction equation for formaldehyde removal is:
4KMnO₄ + 5HCHO + 6H₂SO₄ → 4MnSO₄ + 2K₂SO₄ + 5CO₂ + 11H₂O
(In air, the reaction is more complex, but essentially, formaldehyde is oxidized to CO₂ and H₂O.)

II. Main Features and Advantages
Highly Efficient Removal of Specific Pollutants: Excellent removal of reducing gases such as formaldehyde, hydrogen sulfide (H₂S), and sulfur dioxide (SO₂), as well as VOCs, with efficiency far exceeding that of ordinary activated carbon.

Irreversible Reaction: Pollutants are completely decomposed through chemical reactions, rather than simple adsorption. Therefore, there is no risk of saturated desorption and secondary release, which is its greatest advantage over ordinary activated carbon.

Visual Lifespan Indicator: Purple potassium permanganate turns brown manganese dioxide upon reduction. This color change allows for intuitive evaluation of material consumption and indicates when to replace it.

III. Main Applications
Indoor Air Purification:

Formaldehyde and TVOC Removal in New Homes: This is a core material for treating formaldehyde pollution in newly renovated homes.

Deodorization: Effectively removes odors from bathrooms, kitchens, and pet areas, particularly hydrogen sulfide and ammonia.

Industrial Waste Gas Treatment:

Treats malodorous gases containing hydrogen sulfide, mercaptans, and other gases generated by sewage treatment plants, garbage disposal stations, and chemical plants.

Laboratories and Special Applications:

Used in fume hoods and air purification equipment to treat specific chemical gases.

Carrier Gas Purification for Gas Chromatography:

Removes trace amounts of impurities such as oxygen from carrier gases (such as hydrogen and nitrogen).

IV. Limitations and Precautions
Highly Targeted: While highly effective against reducing pollutants, it's not necessarily more effective than regular activated carbon against non-reactive pollutants (such as simple physically adsorbed substances and certain VOCs). It primarily excels at treating substances that react with potassium permanganate.

Limited Capacity: Potassium permanganate has a limited capacity. Once it's consumed, the remaining capacity becomes that of regular activated carbon. Regular replacement is required.

Environmental Requirements:

Moisture-Resistant: High humidity can cause potassium permanganate to deliquesce and dissipate, reducing its effectiveness and potentially corroding equipment. Therefore, the packaging should be sealed and the environment should be kept dry.

High-Temperature-Resistant: High temperatures may cause potassium permanganate to decompose.

Higher Cost: The manufacturing process is more complex than that of regular activated carbon, resulting in a higher price.
